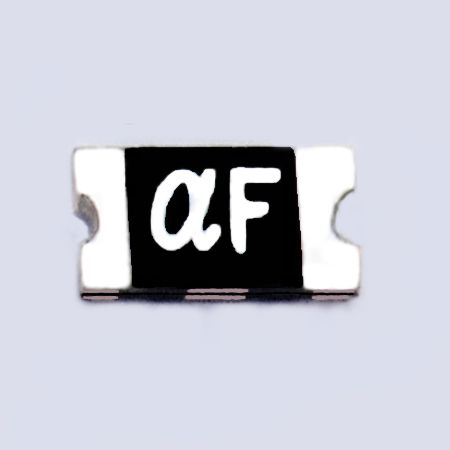

½º£SMD1206ϵÁÐ×Ô»Ö¸´±£ÏÕË¿

(ϵÁÐ)ȫϵÁÐÒŽ¸ñ•øÏÂÝd
Model	V-max (Vdc)	I-max (A)	I-hold (A)	I-trip (A)	Agency Approval	Spec
nSMD005	60.0	100	0.05	0.15	RoHS
nSMD010	60.0	100	0.10	0.25	RoHS
nSMD025	16.0	100	0.25	0.50	UL/RoHS
nSMD035	6.0	100	0.35	0.75	UL/RoHS
nSMD050	6.0	100	0.50	1.00	UL/RoHS
nSMD050-13.2V	13.2	100	0.50	1.00	UL/RoHS
nSMD075	6.0	100	0.75	1.50	UL/RoHS
nSMD100	6.0	100	1.00	1.80	UL/TUV/RoHS
nSMD150	6.0	100	1.50	3.00	UL/RoHS
nSMD200	6.0	100	2.00	3.50	RoHS
nSMD020	16.0	100	0.2	0.46	RoHS
Ihold = Hold Current:maximum current device will sustain for 4 hours without tripping in 25¡ãC still air. ItRip = Trip Current:minimum current at which the device will trip in 25¡ãC still air. V-max = Maximum voltage device can withstand without damage at rated current(I-max). I-max = Maximum fault current device can withstand without damage at rated voltage(V-max).
