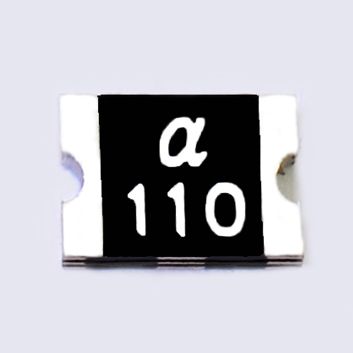

陆海SMD1812系列自恢复保险丝
mSMD (1812) Series
(系列)全系列規格書下載 | |||||||
| Model | V-max (Vdc) | I-max (A) | I-hold (A) | I-trip (A) | Agency Approval | Spec | |
| mSMD010 | 30 | 100 | 0.1 | 0.3 | UL/RoHS |  | |
| mSMD014 | 60 | 100 | 0.14 | 0.34 | RoHS | | |
| mSMD020 | 30 | 100 | 0.2 | 0.4 | RoHS | | |
| mSMD050 | 15 | 100 | 0.5 | 1 | UL/RoHS | | |
| mSMD075 | 13.2 | 40 | 0.75 | 1.5 | UL/RoHS | | |
| mSMD075-16V | 16 | 100 | 0.75 | 1.5 | RoHS | | |
| mSMD110 | 8 | 100 | 1.1 | 2.2 | UL/RoHS | | |
| mSMD110-16V | 16 | 100 | 1.1 | 2.2 | RoHS | | |
| mSMD125 | 16 | 100 | 1.25 | 2.5 | RoHS | | |
| mSMD150 | 8 | 100 | 1.5 | 3 | UL/RoHS | | |
| mSMD150-12V | 12 | 100 | 1.5 | 3 | RoHS | | |
| mSMD150-16V | 16 | 100 | 1.5 | 3 | RoHS | | |
| mSMD160 | 8 | 100 | 1.6 | 2.8 | UL/RoHS | | |
| mSMD200 | 8 | 100 | 2 | 4 | UL/RoHS | | |
| mSMD260 | 8 | 100 | 2.6 | 5 | RoHS | | |
| Ihold = Hold Current:maximum current device will sustain for 4 hours without tripping in 25°C still air. ItRip = Trip Current:minimum current at which the device will trip in 25°C still air. V-max = Maximum voltage device can withstand without damage at rated current(I-max). I-max = Maximum fault current device can withstand without damage at rated voltage(V-max). | |||||||
