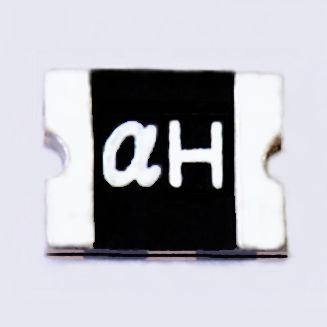

陆海SMD1210系列自恢复保险丝
SMD1210 (1210) Series
(系列)全系列規格書下載 | |||||||
| Model | V-max (Vdc) | I-max (A) | I-hold (A) | I-trip (A) | Agency Approval | Spec | |
| SMD1210-005 | 30 | 100 | 0.05 | 0.15 | RoHS |  | |
| SMD1210-010 | 30 | 100 | 0.10 | 0.30 | RoHS | | |
| SMD1210-020 | 30 | 100 | 0.20 | 0.40 | RoHS | | |
| SMD1210-035 | 6 | 100 | 0.35 | 0.75 | RoHS | | |
| SMD1210-050 | 13.2 | 100 | 0.50 | 1.00 | UL/RoHS | | |
| SMD1210-075 | 6 | 100 | 0.75 | 1.50 | RoHS | | |
| SMD1210-110 | 6 | 100 | 1.10 | 2.20 | RoHS | | |
| SMD1210-150 | 6 | 100 | 1.50 | 3.00 | RoHS | | |
| Ihold = Hold Current:maximum current device will sustain for 4 hours without tripping in 25°C still air. ItRip = Trip Current:minimum current at which the device will trip in 25°C still air. V-max = Maximum voltage device can withstand without damage at rated current(I-max). I-max = Maximum fault current device can withstand without damage at rated voltage(V-max). | |||||||
