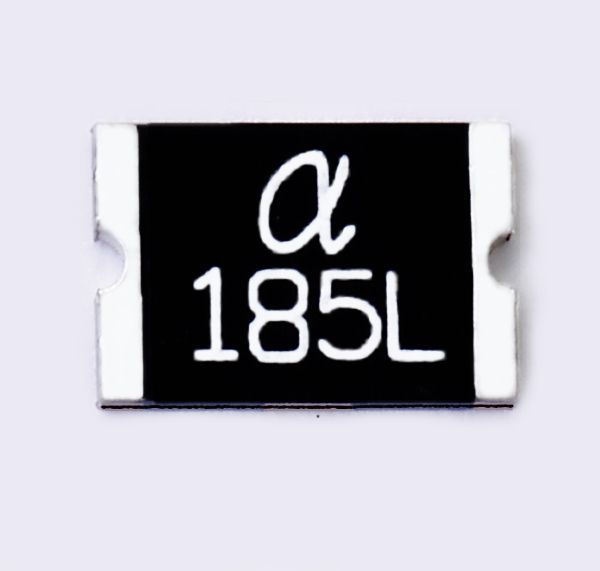

陆海SMD2920系列贴片自恢复保险丝
SMDL (2920) Series
(系列)全系列規格書下載 | |||||||
| Model | V-max (Vdc) | I-max (A) | I-hold (A) | I-trip (A) | Agency Approval | Spec | |
| SMD030L | 60 | 100 | 0.30 | 0.60 | RoHS |  | |
| SMD050L | 60 | 100 | 0.50 | 1.00 | RoHS | | |
| SMD075L | 33 | 100 | 0.75 | 1.50 | RoHS | | |
| SMD100L | 33 | 100 | 1.10 | 2.20 | RoHS | | |
| SMD125L | 33 | 100 | 1.25 | 2.50 | RoHS | | |
| SMD150L | 33 | 100 | 1.50 | 3.00 | RoHS | | |
| SMD185L | 33 | 100 | 1.85 | 3.70 | RoHS | | |
| SMD200L | 16 | 100 | 2.00 | 4.00 | RoHS | | |
| SMD250L | 16 | 100 | 2.50 | 5.00 | RoHS | | |
| SMD260L | 6 | 100 | 2.60 | 5.20 | RoHS | | |
| SMD300L-6V | 6 | 40 | 3.00 | 6.00 | UL/RoHS | | |
| SMD300L | 16 | 100 | 3.00 | 6.00 | RoHS | | |
| Ihold = Hold Current:maximum current device will sustain for 4 hours without tripping in 25°C still air. ItRip = Trip Current:minimum current at which the device will trip in 25°C still air. V-max = Maximum voltage device can withstand without damage at rated current(I-max). I-max = Maximum fault current device can withstand without damage at rated voltage(V-max). | |||||||
